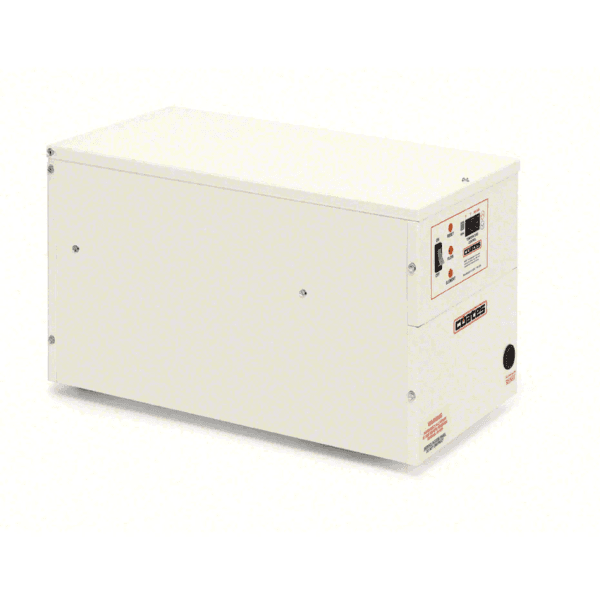

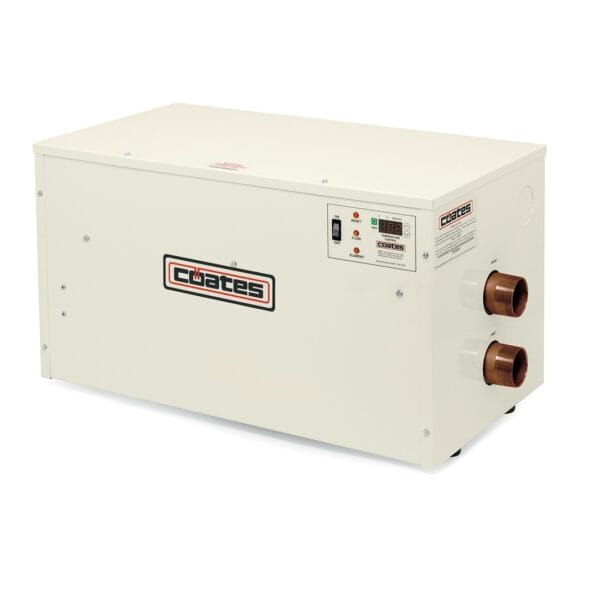

Coates 32054PHS-4 Electric Heater, 208V, 54KW, 3PH
Original price was: $10,478.15.$9,719.99Current price is: $9,719.99.
Along with the same features as our 12-18kw heaters, our 36-57kw heaters now include a digital thermostat for more precise control of pool water temperature.
Contact us for availability
STANDARD FEATURES:
-
Incoloy heating elements
-
Digital thermostat
-
Manual reset high temp limit
-
Flow switch
-
2″ male NPT connections
-
Stainless steel tank
-
Heavy duty contactors
-
Element, flow and high temp “on” lights
TECHNICAL DATA:
- PHS: 718mm L x 387mm W x 387mm H (45.4kg) 28”L x 15”W x 15′ H (100 lbs.)
- Min. Flow Rate: 20 GPM
- Max Flow Rate: 80 GPM
| 240V SINGLE PHASE | ||
| MODEL NUMBER | KW | AMPS |
| 12436PHS-3 | 36 | 150 |
| 12445PHS | 45 | 188 |
| 12454PHS-4 | 54 | 225 |
| 12457PHS | 57 | 238 |
| 208V THREE PHASE | ||
| MODEL NUMBER | KW | AMPS |
| 32036PHS-3 | 36 | 100 |
| 32045PHS | 45 | 125 |
| 32054PHS-4 | 54 | 150 |
| 32057PHS | 57 | 158 |
| 480V THREE PHASE | ||
| MODEL NUMBER | KW | AMPS |
| 34836PHS-3 | 36 | 44 |
| 34845PHS | 45 | 55 |
| 34854PHS-4 | 54 | 65 |
| 34857PHS | 57 | 69 |
| 600V THREE PHASE | ||
| MODEL NUMBER | KW | AMPS |
| 36036PHS-3 | 36 | 35 |
| 36045PHS | 45 | 44 |
| 36054PHS-4 | 54 | 52 |
| 36057PHS | 57 | 55 |
| Manufacturer | |
|---|---|
| Heater Fuel |
Electric |
| Heater Pool Type |
Either |
| Suitable for Saltwater | |
| Voltage |
208V |
| Killowatts |
24kW – 57kW |
| Warranty |
1 Year |
